Electrical Performance

Parameter	Value
Article No.型号	MCX-KY
Frequency range频率范围	0 ~ 6GHz
Impedance特性阻抗	50Ω
VSWR电压驻波比	≤1.30
Withstanding Voltage耐压	750V
Rated Power额定功率	1000W
Connector Type接口	MCX-Women interface
Standard引用标准	IEC60169-4

Mechanical Performance

Parameter	Value
Waterproof degree防水等级	NO
Moisture resistance抗湿性	NO
Mating cycles插拨次数	≥500

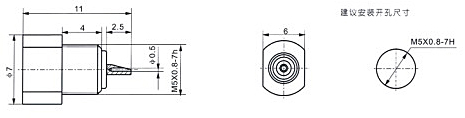

Outer Dimension外观尺寸	11*7mm

Environment Performance

Parameter	Value
Operating temperature range工作温度	-65℃～+165℃
Storage temperature range储存温度	-30℃～+60℃

Material &Plating

Connector parts	Material	Plating
Center conductor中心导体	Brass	镀金
Outer conductor外导体	Brass	Silver镀金
Dielectric介质	PTFE	/
Salt Mist盐雾		48H

Packing

Standard包装要求

5000pc/plastic bag in separate carton

Remark：Dimensions are in mm with tolerance of ±2%.
