N-C-J-3

Describe 描述
N 型连接器
N Connector

1. Electrical Performance

Parameter	Value
Article No.型号	N-J-C-3
Frequency range频率范围	DC ~6GHz
Impedance特性阻抗	50Ω
VSWR电压驻波比	≤1.3
Withstanding Voltage耐压	1500V
Insulation resistance绝缘电阻	5000MΩ
Connector Type接口
Standard引用标准	IEC60169-4


2. Mechanical Performance

Parameter	Value
Waterproof degree防水等级	NO
Moisture resistance抗湿性	NO
Mating cycles插拨次数	≥500

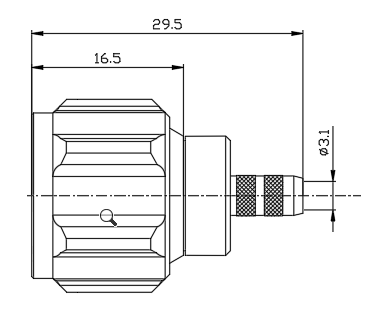

Outer Dimension外观尺寸	29.5*15.8mm


3. Environment Performance

Parameter	Value
Operating temperature range 工作温度	-65℃～+165℃
Storage temperature range 储存温度	-30℃～+60℃


4. Material &Plating

Connector parts	Material	Plating
中心导体	Brass	镀三元合金
Outer conductor外导体	Brass	镀三元合金
Dielectric介质	PTFE	/
Salt Mist盐雾		96H


5. Packing

Standard包装要求

3600pc/plastic bag in separate carton

Remark：Dimensions are in mm with tolerance of ±2%.
